LDAP Exports

The BlueMind LDAP export add-on lets you export users and groups defined in BlueMind to an LDAP directory.

How it works​

BlueMind exports its data to an openLDAP directory. This service is installed during the LDAP export plugin installation and its dependencies.

Generated directory structure​

The root DN of the generated directory is dc=local.

Each BlueMind domain exports its data to a dedicated branch named with the domain UID. Under these domain branches, users and groups of the corresponding domain are placed in dedicated branches.

For example, for a BlueMind composed of 2 distinct domains with UID domain1.internal and domain2.internal, the LDAP directory structure is:

dc=local
 |- dc=domain1.internal,dc=local
 | \- ou=users,dc=domain1.internal,dc=local
 | | \- # Utilisateurs du domaine d'UID domain1.internal
 | | |- ...
 | |
 | \- ou=groups,dc=domain1.internal,dc=local
 |   \- # Groupes du domaine d'UID domain1.internal
 |   |- ...
 |
 |- dc=domain2.internal,dc=local
   \- ou=users,dc=domain2.internal,dc=local
   | \- # Utilisateurs du domaine d'UID domain2.internal
   | |- ...
   |
   \- ou=groups,dc=domain2.internal,dc=local
     \- # Groupes du domaine d'UID domain2.internal
     |- ...

Authentication​

BlueMind user accounts can be authenticated to the LDAP directory using the user's DN and BlueMind password.

Passwords are not exported to the LDAP directory.
To validate a password, the LDAP directory is configured to query the BlueMind bm-core service via the bm-ysnp service.

Root administrator passwords (rootdn):

RootDN administratorPasswordDescription
dc=localuid=admin,dc=localThe one from admin0@global.virtUsed by BlueMind to manage directory content
cn=configuid=admin,cn=configThe one from admin0@global.virtUsed by BlueMind to manage directory configuration
It is possible to use API keys for authentication.

Installation procedure​

  1. Install the necessary packages on the server hosting BlueMind and restart it:

    aptitude update
    aptitude install bm-plugin-admin-console-ldap-export bm-plugin-core-ldap-export
    bmctl restart

  2. Install the bm-ldap-role package on the server on which you wish to run the LDAP directory (this may be the BlueMind server itself or a separate server) and restart it:

    aptitude update
    aptitude install bm-ldap-role
    bmctl restart

    If questions are asked during package installation, choose the default answer: the LDAP directory configuration is reset by BlueMind in the following steps, so any customization would be lost.

  3. Assign the dedicated role to the server.
    To do this:

    • log into the administration console as superadministrator admin0 and go to "Application servers".

    💡 if it's a separate server and doesn't yet exist, add it here using the New > Server button

    • select the server and go to the "Server roles " tab
    • in the "LDAP Directory" section, check "LDAP master directory created by BlueMind":

  4. Confirm by clicking "Save"

  5. Associate the server with the desired domain(s).

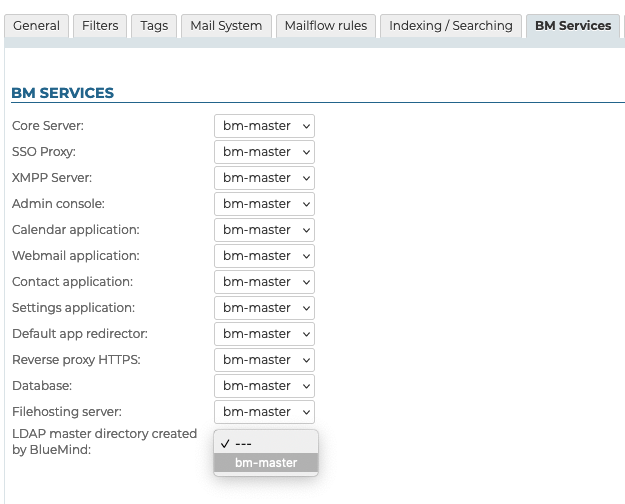

    To do this, go to Domain management > Supervised domains and:

    • select the domain to be exported in LDAP format

    • go to the "BM Services " tab

    • Select the server for the service with the same name "Master LDAP directory generated by BlueMind":

    • Confirm by clicking "Save"

    💡 Repeat for each desired domain.
