Videoconferences with Zoom

BlueMind can be connected to the Zoom conferencing system to enable users to easily create conferences and link them to their agenda meetings.

Installation​

To make the new features available to users, install the plugin by installing the following packages on the server and restarting BlueMind:

aptitude install bm-plugin-admin-console-videoconferencing-zoom bm-plugin-core-videoconferencing-zoom
bmctl restart

Administration​

Zoom configuration in BlueMind requires OpenID authentication. This requires configuration from the Zoom administration console to give BlueMind authorization to query the Zoom server for the user authentication needed to access videoconferences.

Zoom instance configuration​

Required Permissions

Configuration requires Zoom instance administration rights.

  • The built-in Zoom integration requires the following OpenID Scope:
    meeting:write
  • The Redirect URL for OAuth and OAuth allow list parameters must match the URL https://<external-url-bluemind>/bm-openid/auth/videoconferencing-zoom.
  • Retrieve the following two parameters that will be required for BlueMind configuration (see next chapter):
    • Application ID
    • Application Secret

Configuring OpenID authentication​

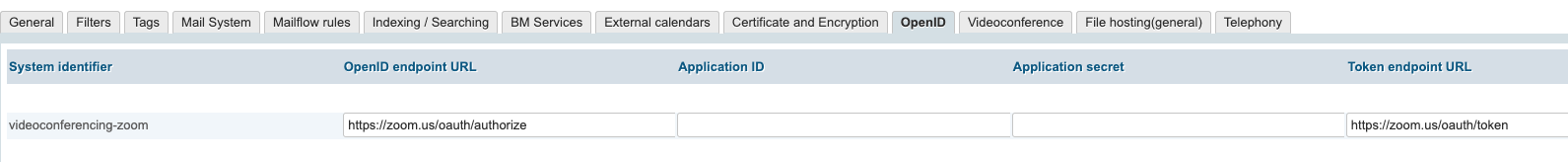

Go to the BlueMind administration console in System management > Supervised domains > choose the desired domain > OpenID tab:

Use the following values to fill in OpenID authentication data:

  • OpenID Endpoint URL: https://zoom.us/oauth/authorize
  • Application ID: supplied by Zoom, retrieved during Zoom configuration.
  • Secret application: supplied by Zoom, retrieved during Zoom configuration.
  • Token Endpoint URL: https://zoom.us/oauth/token

Setting up BlueMind​

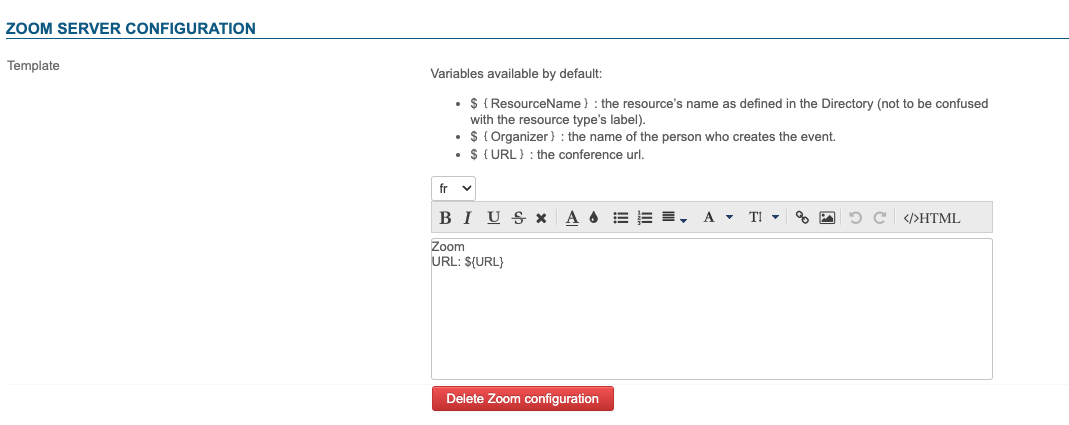

In the BlueMind administration console, go to System management > Supervised domains > select the desired domain > Videoconferencing tab:

Enter the template of a videoconference invitation, for example :

${Organisateur} vous invite à une conférence.
Rejoindre : ${URL}

This template can be declined in several languages using the drop-down list.

⇒ Once the template has been saved, a resource named "Zoom" is automatically created and made visible in the directory. This will enable users to create videoconferences automatically.

Default rights

By default, the resource is not shared, so users cannot link videoconferences.

For users to have access, they must be assigned sharing rights to the resource. To learn more, see the following paragraph Granting access rights to users

To disassociate a Zoom server from the domain :

  • go to System management > Supervised domains > choose the desired domain > Videoconferencing tab
  • click on the "Delete Zoom configuration" button
  • validate the confirmation request
note

There's no need to click the "Save" button at the bottom of the page: the request is effective as soon as you confirm it.

⇒ The associated resource is automatically deleted, along with any shares granted to users; it no longer appears in entity management and users can no longer reserve it.

Content template​

Content template configuration is carried out on the Zoom server itself.

Accessing the videoconference​

When a user uses Zoom videoconferencing for the first time, the OpenID protocol (see above) is used to authenticate the user to the Zoom server, and BlueMind will retrieve a secret key authorizing it to create videoconferences on the user's behalf.

BlueMind has no knowledge of users' Zoom IDs.

Grant access rights to users​

The new feature is accessed via the Zoom resource created during BlueMind configuration (see above):

This resource is administered like any other resource, with share management opening up reservation rights and, de facto, the generation of videoconferencing links. So you have to give a reservation permission (share right "Can book this resource" or above) to the desired users or groups so they can create videoconferences for their events:

Availability times

As a resource, it can be assigned working hours or a reservation policy. However, as the link generated is unique, this will not affect the availability of the videoconference itself: the link will still be active and available outside these times.

Using the resource​

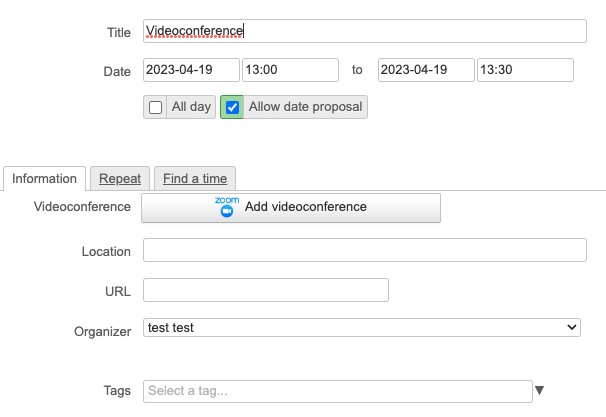

As soon as users have reservation rights for the resource (see previous paragraph), a button is available in the event creation interface:

For further information, see :
