Videoconferences with Webex

BlueMind can be connected to the Webex conferencing system to enable users to easily create conferences and link them to their agenda meetings.

Installation​

To make the new features available to users, install the plugin by installing the following packages on the server and restarting BlueMind:

aptitude install bm-plugin-admin-console-videoconferencing-webex bm-plugin-core-videoconferencing-webex
bmctl restart

Administration​

Configuring OpenID authentication​

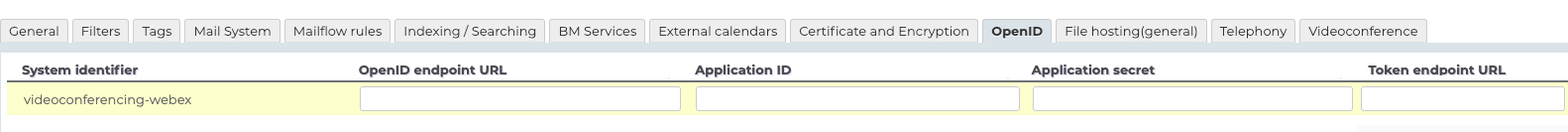

Go to System management in the administration console > Supervised domains > Choose the desired domain > OpenID tab :

Fill in the authentication data OpenID :

Integration saved with Cisco Webex requires the following OpenID "Scopes":

  • meeting:schedules_read
  • meeting:schedules_write
  • meeting:preferences_read
  • meeting:participants_read
  • meeting:participants_write

The "Redirect URL" parameter must match the URL https://<external-url-bluemind>/bm-openid/auth/videoconferencing-webex.

Server configuration​

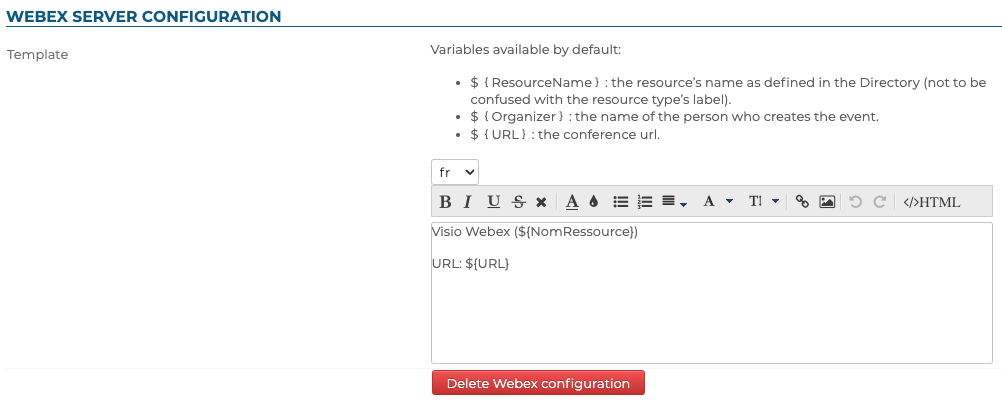

Go to the administration console in System management > Supervised domains > choose the desired domain > Videoconferencing tab:

Enter the template of a videoconference invitation, for example :

${Organizer} has invited you to a videoconference.
Click this link to join: ${URL}.

This template can be declined in several languages using the drop-down list.

⇒ Once the template has been saved, a resource named "Webex" is automatically created and displayed in the directory. This will enable users to create videoconferences automatically.

Default rights

By default, the resource is not shared, users cannot link video conferences.

For users to have access, they must be assigned sharing rights to the resource. To learn more, see the following paragraph Granting access rights to users

To disassociate a Webex server from the domain :

  • go to System management > Supervised domains > choose the desired domain > Videoconferencing tab
  • click on the "Delete Webex configuration" button
  • validate the confirmation request
Immediate action

There's no need to click on the "Save" button at the bottom of the page, as your request is effective as soon as you've confirmed it.

⇒ The associated resource is automatically deleted, along with any shares granted to users; it no longer appears in entity management and users can no longer reserve it.

Content template​

Content template configuration is carried out on the Webex server itself.

Accessing the videoconference​

Give users rights​

Access to the new functionality is done through the Webex resource created during the server configuration (see above) :

This resource is administered like any other resource, with share management opening up reservation rights and, de facto, the generation of videoconferencing links. So you have to give a reservation permission (share right "Can book this resource" or above) to the desired users or groups so they can create videoconferences for their events:

Availability times

As a resource, it can be assigned working hours or a reservation policy. However, as the link generated is unique, this will not affect the availability of the videoconference itself: the link will still be active and available outside these times.

Using the resource​

As soon as users have reservation rights for the resource (see previous paragraph), a button is available in the event creation interface:

Pour en savoir plus sur le fonctionnement, se reporter à la page de documentation du guide utilisateur : Lier une visioconférence à un événement.

For further information, see:
