Backup problems with DataProtect

This page will help you to identify and resolve problems with your DataProtect backup, and to investigate them by analyzing the relevant logs.

Known issues​

Problems with the backup file system​

The causes of a malfunction in /var/backups/bluemind can be:

The file system is in read-only mode​

Identify a read-only partition:

mount | grep '(ro' | grep bluemind

Identify the associated drive:

mount | grep '(ro' | grep bluemind | awk '{print $1}'

Attempt to repair the file system contained in the partition:

umount /var/backups/bluemind
e2fsck -f -y /dev/device

⇒ If this command has been successfully completed, the system is clean and can be mounted:

mount /var/backups/bluemind

⇒ If this action doesn't solve the problem, the problem is more serious and certainly linked to the physical disk: it needs to be replaced.

The partition is not mounted​

Try mounting the partition with the following command:

mount /var/backups/bluemind

⇒ If mounting is not done, this means that no mount point have been previously defined. See the following page: Configuring an NFS mount point

The volume is full​

This can be either the file system or its metadata (i-nodes).

Identify a full file system with the df command:

$ df -h
Filesystem                        Size    Used Avail  Use% Mounted on
/dev/sdb1                          1TB     1TB   0GB  100% /var/backups/bluemind
                                                        ↳[Poucentage d'utilisation de la partition]

To analyze disk space usage, you can also use the ncdu tool:

ncdu /var/backups/bluemind

Identify a file system whose metadata part (i-nodes) is full:

$ df -ih
Filesystem                        Inodes   IUsed  IFree  IUse% Mounted on
/dev/sdb1                           100M 1000000      O   100% /var/backups/bluemind
                                                            ↳[Poucentage d'utilisation de la partition]

To analyze disk space used in terms of i-nodes, you can use the following command:

find /var/backups/bluemind/dp_spool/rsync -mindepth 2 -maxdepth 4 -type d -exec du -sh --inodes {} \; | sort -g

⇒ In all cases (system or i-node), you must either free up space (in terms of volume or number of files (i-node)), or add to it.

Use reserved disk space

⚠️ This operation should be carried out as a last resort, when other solutions, such as adding a new disk, are not available.

In some cases, the file system has a dedicated space reserved for this purpose. For EXT, for example, you can view the reserved space with the following command:

tune2fs -l /dev/device | grep 'Reserved block count'

If you wish to use this space, you can execute the following command (where 1 equals the new value to be reserved, in percent):

tune2fs -m 1 /dev/device

Analyze DataProtect logs​

Logs can be analyzed in two ways:

Using the administration console​

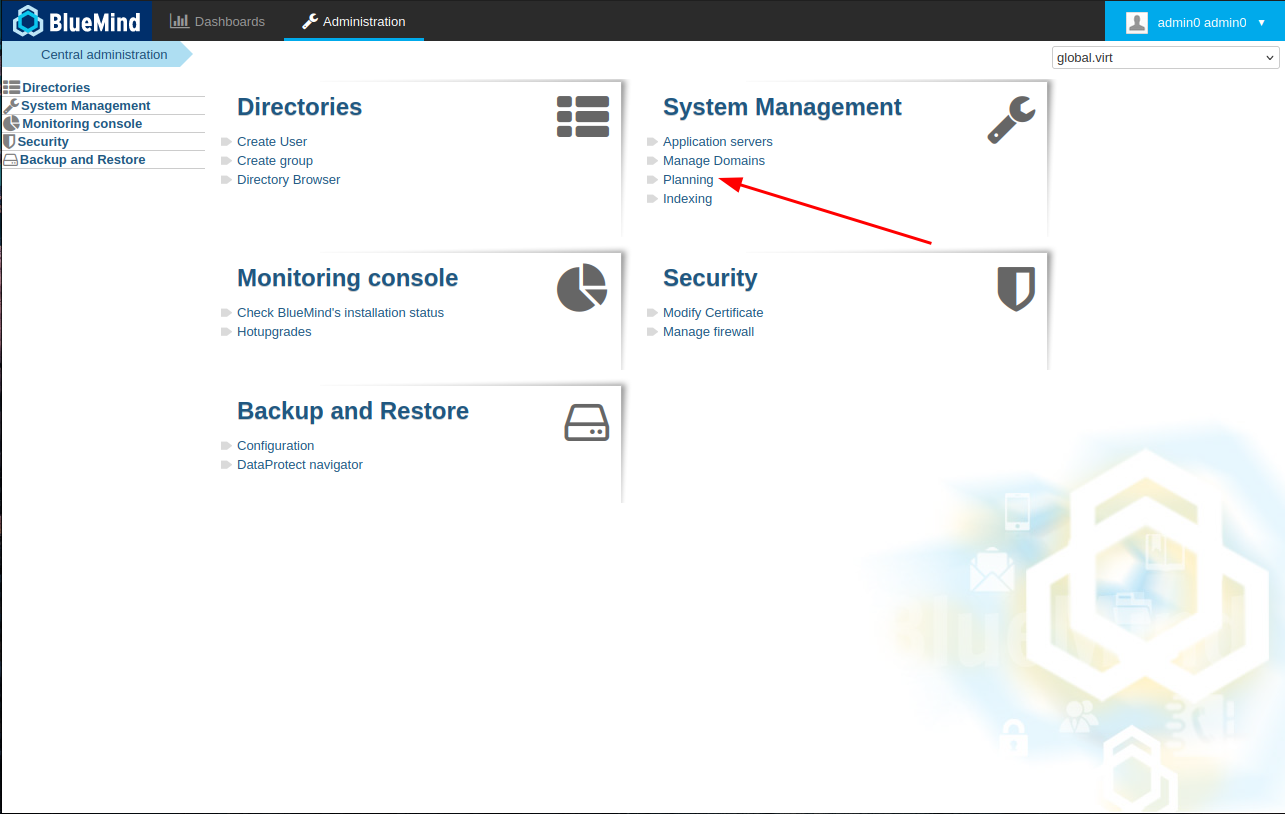

Go to System management > Planning :

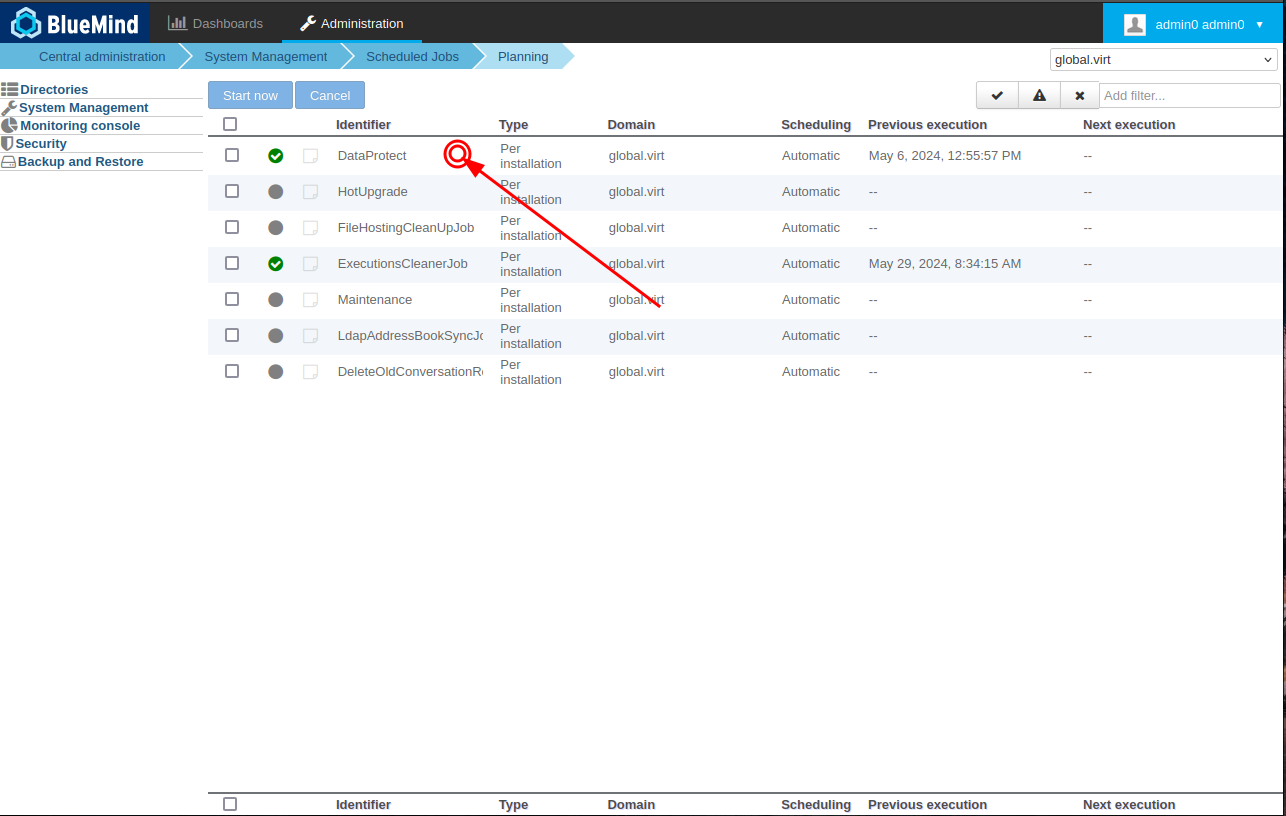

Select the DataProtect task:

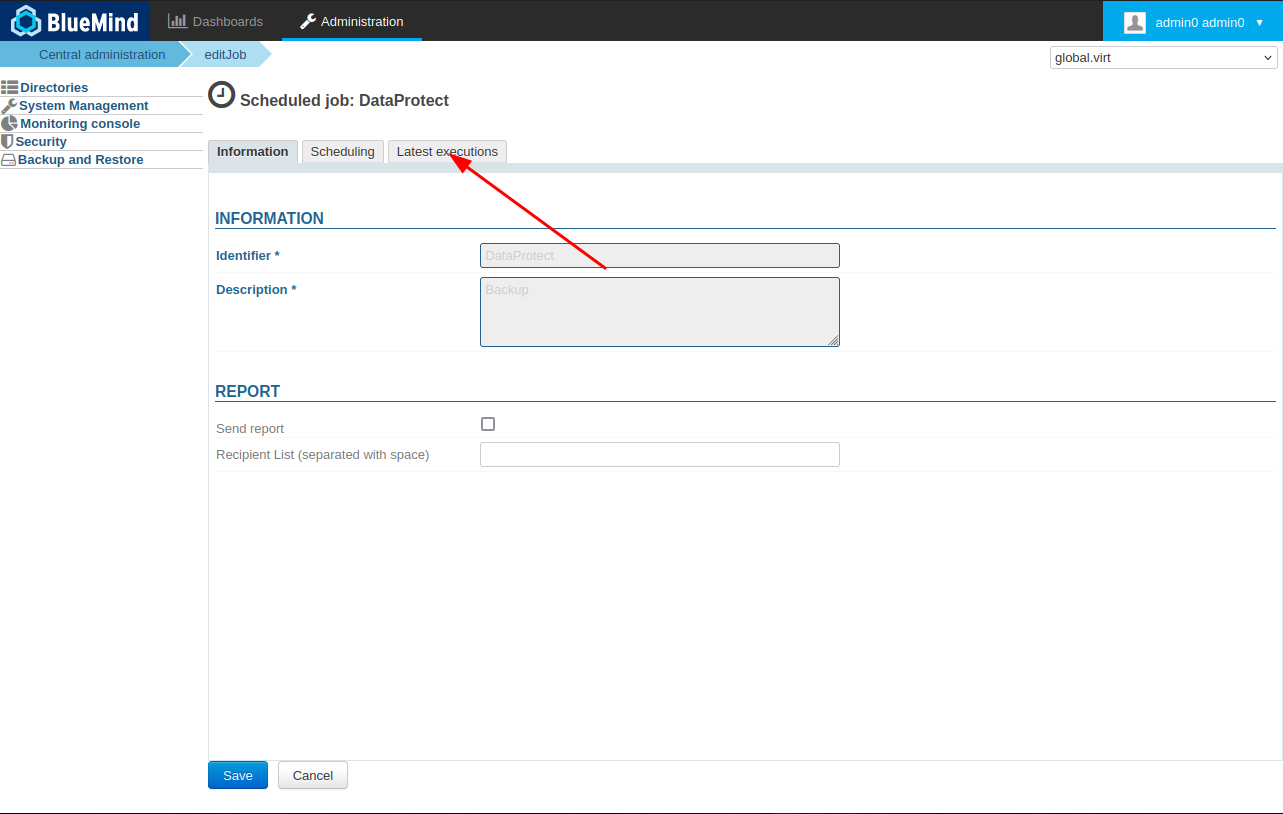

Go to the Latest executions tab:

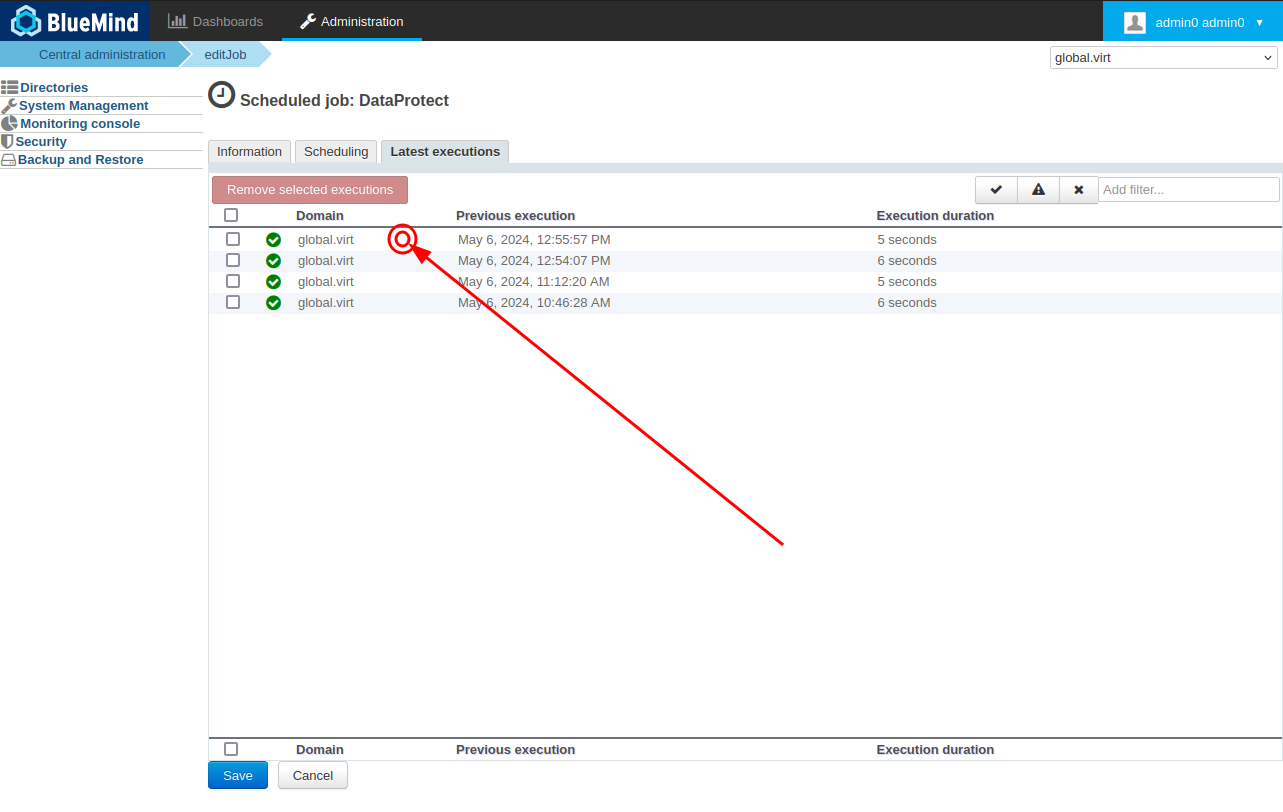

Select an execution from the list:

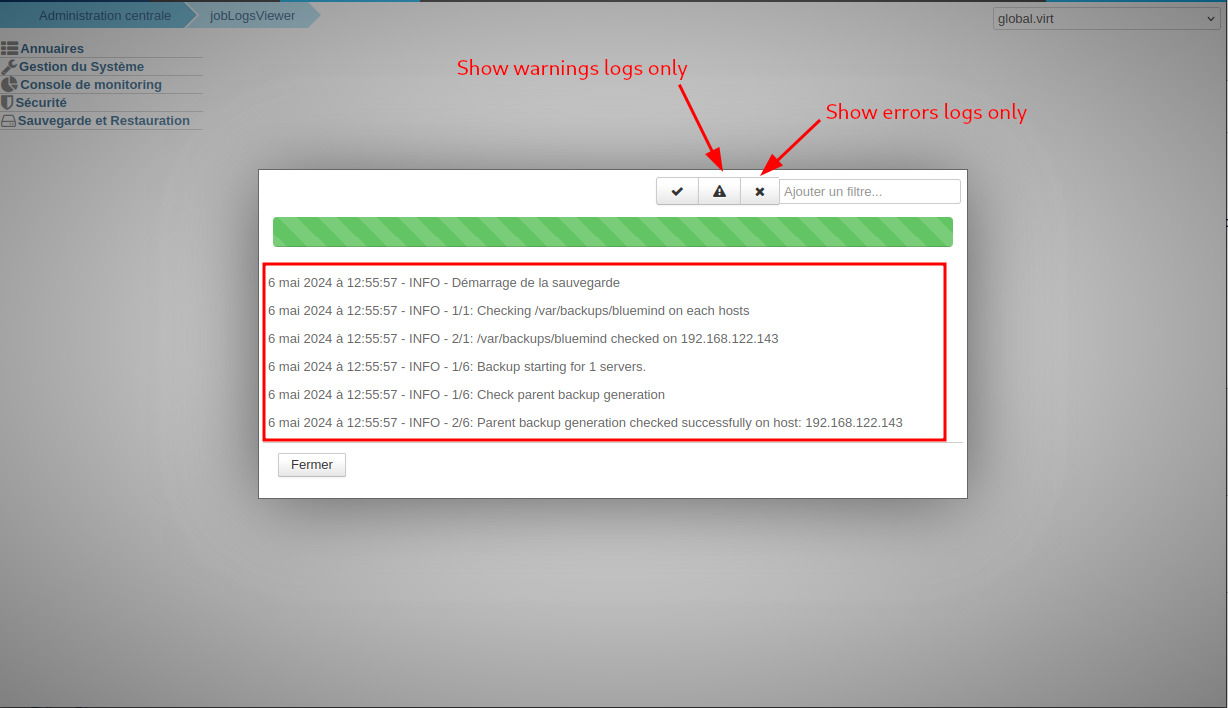

A popup window opens with the execution logs. The buttons can be used to filter entries to find a particular type more easily:

tip

In the event of a problem requiring the intervention of our support team, please consult the Support request page to gather as much information as possible.

In command line​

Connected to the server via ssh, perform a grep on the BlueMind main log file /var/log/bm/core.log:

grep -Ei 'continu|backup*|dataprotect|SaveAllTask|DPContext|snapshot|ToolSession|AbstractPgWorker|rsync|DiskSpaceMonitor|/*' /var/log/bm/core.log |less
