Wazo configuration

This document shows how to install and configure the BlueMind plugins that allow interconnection with Wazo.

Installing the Wazo add-on​

  1. Install the required packages:

    aptitude install bm-plugin-core-cti-wazo

  2. Restart BlueMind:

    # bmctl restart

BlueMind configuration​

Domain configuration​

  • Log on to BlueMind as system administrator or domain administrator
  • Go to the page System Management > Manage Domains
  • Select the domain you want ton configure

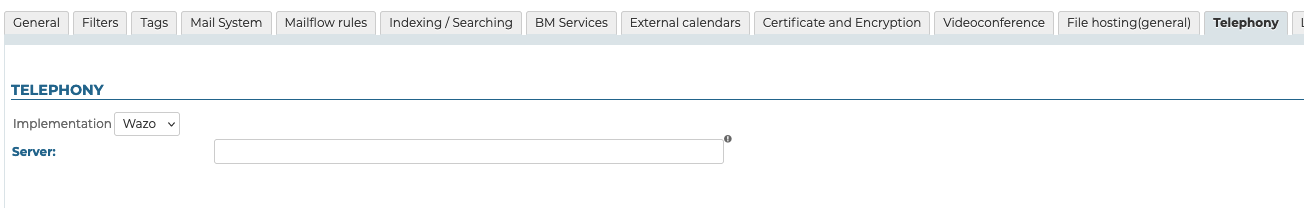

  • Click the "Telephony" tab
  • Select the implementation you want to use, in this case "Wazo"
  • Enter the https address of the Wazo server:
  • Save the changes

User configuration​

  • Log on to BlueMind as system administrator or domain administrator
  • Go to the page Directories > Directory Browser
  • Select the user you want to configure

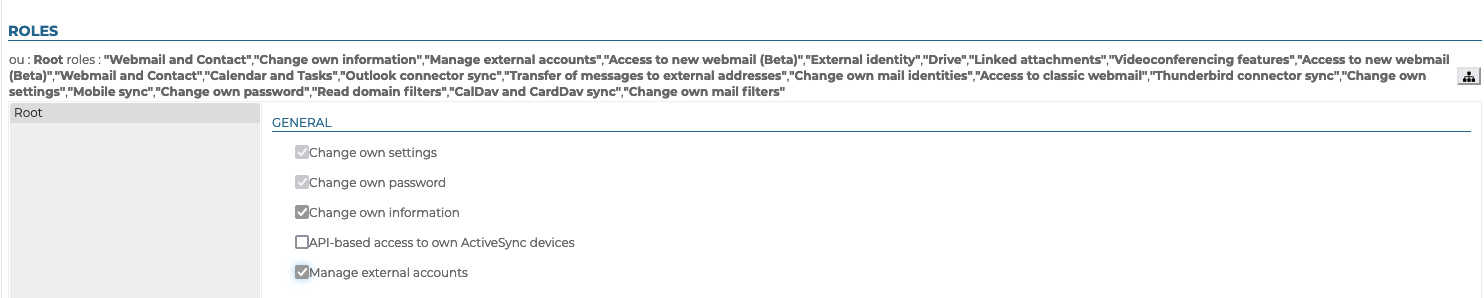

  • Check the "Manage external accounts" role in the "General" tab:
  • Save the changes

User configuration​

The following bm-cli command maps BlueMind users to Wazo users, and creates external accounts in BlueMind associated with existing users:

# bm-cli wazo populate [-s] -d=<domain> -u=<userLogin>
  • -d: the BlueMind domain name
  • -u: the login of a BlueMind user with an external Wazo account (Wazo Admin account required), which must first be configured manually (see below Using Wazo > Configuring an external account)

Using Wazo​

Set up an external account​

  • Log into BlueMind as the user you want to configure
  • Go to the page My Account > External Account

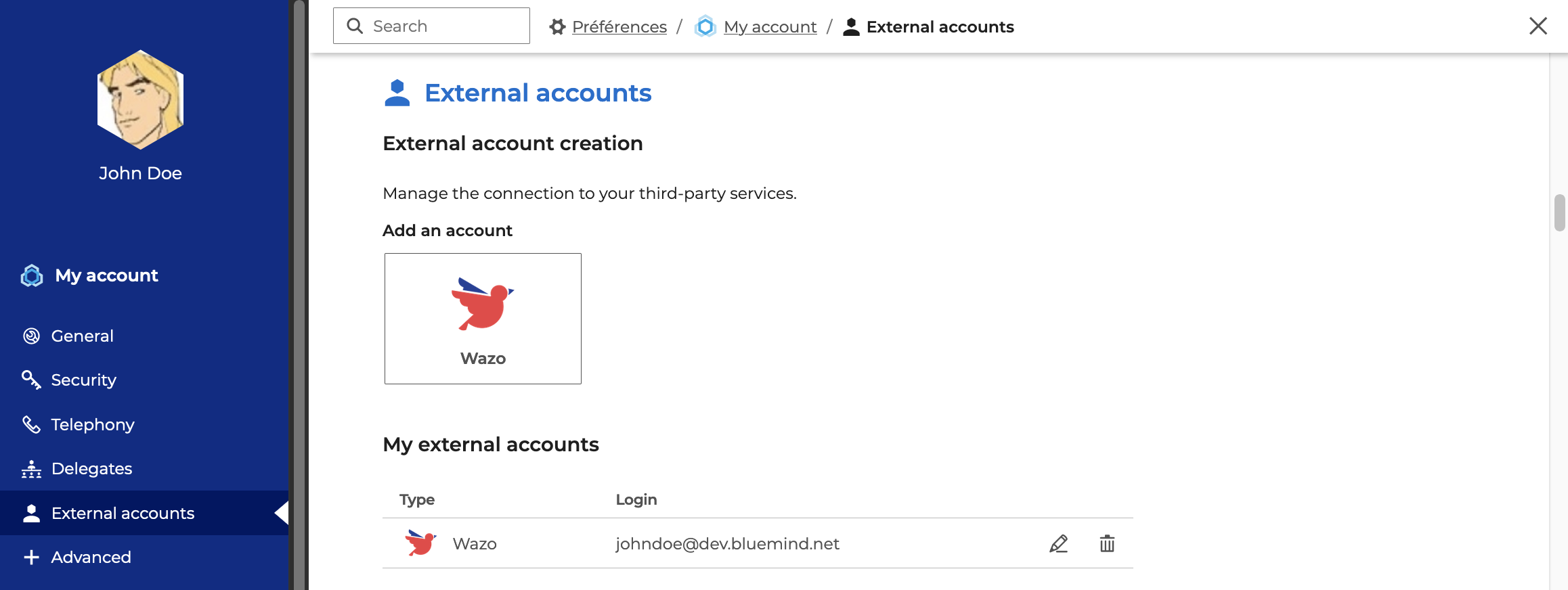

  • Configuring an external account
  • Enter the email address and password used in Wazo, and validate:
  • Save the changes

Making calls from the Webmail​

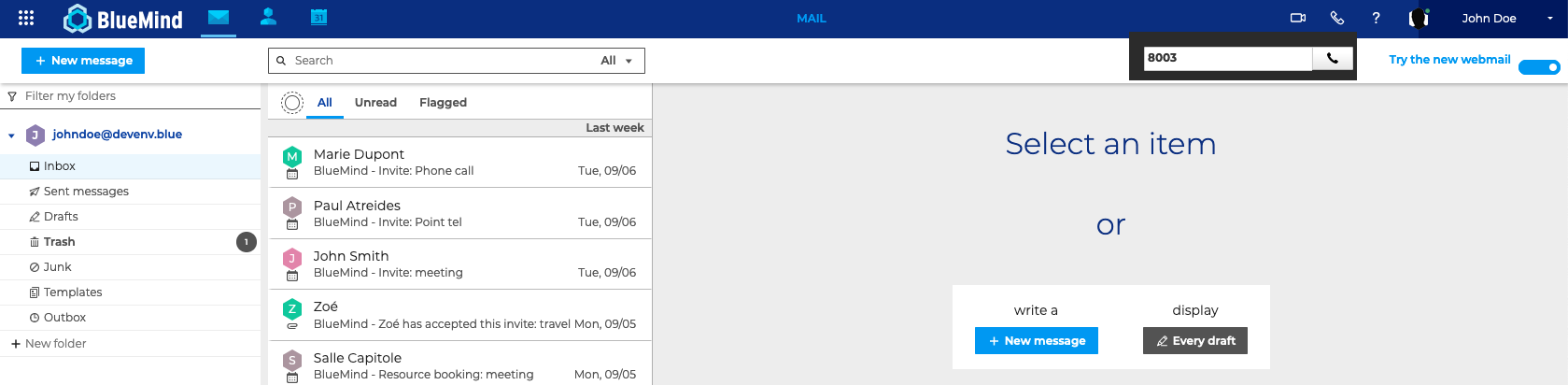

Click the phone icon and enter the phone number of the person you want to call:

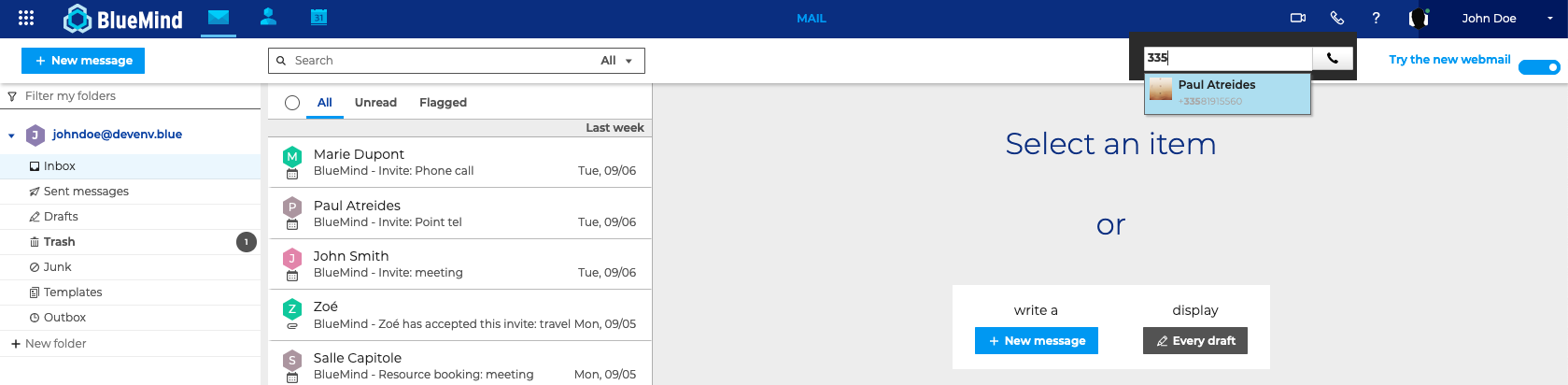

If the user's phone number is included in their contact card, autocomplete can help you find it:

Making a call from a contact card​

  • Open a contact card

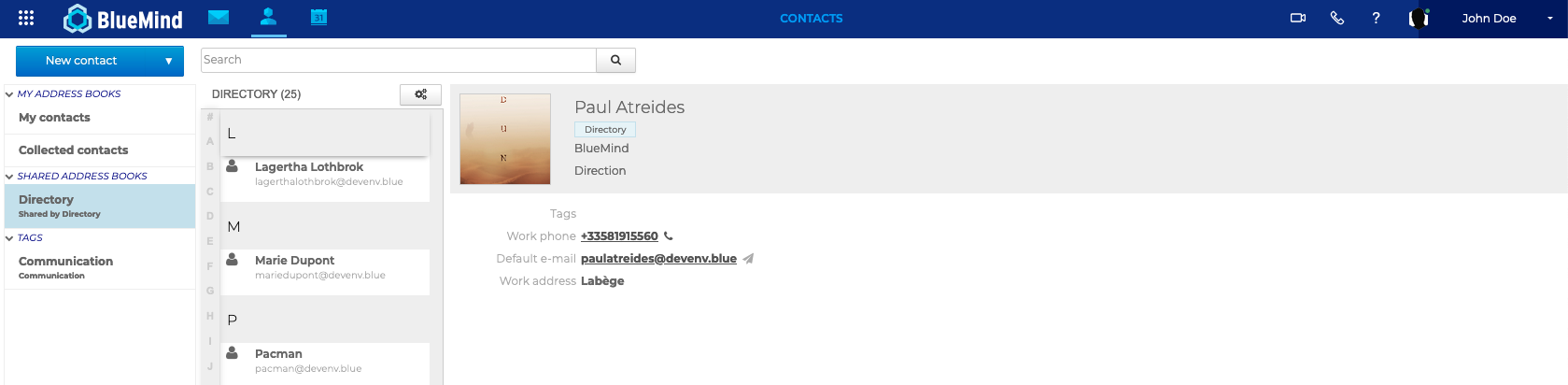

  • Click the telephony icon next to the telephone number of the user you wish to contact:
