Setting Up Xivo/Avencall
This document shows how to install and configure the BlueMind plugins that allow interconnection with Avencall's XiVO.
Configuring Xivo
- create a Xuc user in Services -> IPBX -> Users
- enable the Xivo client for this user using the following:
- login: xuc
- password: 0000
- create a Web Services user in Configuration > Web Services Access using the following settings:
- Login: xivows
- Password: xivows
- Host: empty
- Make sure that Multiqueues call stats sharing is enabled in Services > Ipbx > Advanced configuration > Queues
Installing the XiVO plugin for BlueMind
Prerequisite
The XUC service must be installed on the Avencall server and set up on port 8090.
/etc/xuc/xuc.conf
contents:
XivoWs {
enabled=true
}
api {
eventUrl = "http://<bluemind.srv.ip:9091/xivo/1.0/event/domain.tld/dropbox/"
}
xucami {
enabled = false
}
Procedure
- Install the required packages:
- Debian/Ubuntu
- RedHat/CentOS
aptitude install bm-plugin-core-cti-xivo bm-xivobridge bm-plugin-core-cti bm-plugin-webserver-cti
yum install bm-plugin-core-cti-xivo bm-xivobridge bm-plugin-core-cti bm-plugin-webserver-cti
info
In the case of a distributed installation, the bm-plugin-webserver-cti
package must be installed on the server hosting the bm-webserver
service.
- Once they are installed, restart BlueMind:
# bmctl restart
- Modify the file
/etc/bm/xivo.ini
with the following information:
xuc.host=<xuc_host>:8090
Note: XUC's default port is 8090 but it might be 9000 on old XUC server versions.
Configuration in BlueMind
Domain Configuration
Still logged in as global admin0:
- Go to System Management > Modify Domain.
- Select the domain you want to set up to use Xivo.

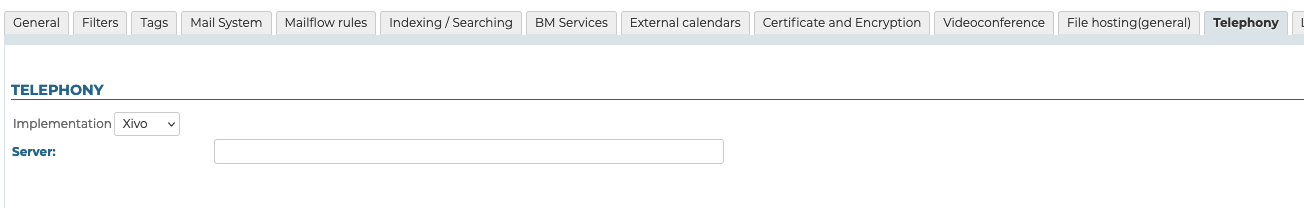

- In the "Telephony" tab, enter the relay server:
- Save this configuration.
Running a configuration test
You can test this configuration by simulating a XIVO event using CURL:
curl -X POST -H 'Content-Type: application/json' http://#BLUEMIND:9091/xivo/1.0/event/#DOMAIN/dropbox/ -d '{"username":"#LOGIN","status":#STATUS}'
with:
- #BLUEMIND: BlueMind url
- #DOMAIN : concerned domain (for example blue-mind.net)
- #LOGIN: user login (excluding the domain)
- #STATUS: phone status.
Supported statuses are:
- 0: available (green)
- 2: busy (red)
- 8: ringing (blinking red)
