Backup problems with DataProtect
This page will help you to identify and resolve problems with your DataProtect backup, and to investigate them by analyzing the relevant logs.
Known issues
Problems with the backup file system
The causes of a malfunction in the /var/backups/bluemind folder can be :
The file system is in read-only mode
Identify a read-only partition:
mount | grep '(ro' | grep bluemind
Identify the associated drive:
mount | grep '(ro' | grep bluemind | awk '{print $1}'
Attempt to repair the file system contained in the partition:
umount /var/backups/bluemind
e2fsck -f -y /dev/device
⇒ If this command has been successfully completed, the system is clean and can be mounted:
mount /var/backups/bluemind
⇒ If this action doesn't solve the problem, the problem is more serious and certainly linked to the physical disk: it needs to be replaced.
The partition is not mounted
Try mounting the partition with the following command:
mount /var/backups/bluemind
⇒ If mounting is not done, this means that no mount point have been previously defined. See the following page: Configuring an NFS mount point
The volume is full
This can be either the file system or its metadata (i-nodes).
Identify a full file system with the df command:
$ df -h
Filesystem Size Used Avail Use% Mounted on
/dev/sdb1 1TB 1TB 0GB 100% /var/backups/bluemind
↳[Poucentage d'utilisation de la partition]
To analyze disk space usage, you can also use the ncdu tool:
ncdu /var/backups/bluemind
Identify a file system whose metadata part (i-nodes) is full:
$ df -ih
Filesystem Inodes IUsed IFree IUse% Mounted on
/dev/sdb1 100M 1000000 O 100% /var/backups/bluemind
↳[Poucentage d'utilisation de la partition]
To analyze disk space used in terms of i-nodes, you can use the following command:
find /var/backups/bluemind/dp_spool/rsync -mindepth 2 -maxdepth 4 -type d -exec du -sh --inodes {} \; | sort -g
⇒ In all cases (system or i-node), you must either free up space (in terms of volume or number of files (i-node)), or add to it.
⚠️ This operation should be carried out as a last resort, when other solutions, such as adding a new disk, are not available.
In some cases, the file system has a dedicated space reserved for this purpose. For EXT, for example, you can view the reserved space with the following command:
tune2fs -l /dev/device | grep 'Reserved block count'
If you wish to use this space, you can execute the following command (where 1 equals the new value to be reserved, in percent):
tune2fs -m 1 /dev/device
ES backup folder is empty
When the ElasticSearch backup option is enabled in Backup configuration, 2 mount points are required, as recommended in Minimum disk performance.
ElasticSearch data must be static to be saved.
This is why, when DataProtect is run, ES data in /var/spool/bm-elasticsearch/data is copied to /var/spool/bm-elasticsearch/repo and then saved.
Once this task has been completed, the /var/spool/bm-elasticsearch/repo is emptied.
Analyze DataProtect logs
Logs can be analyzed in two ways:
Using the administration console

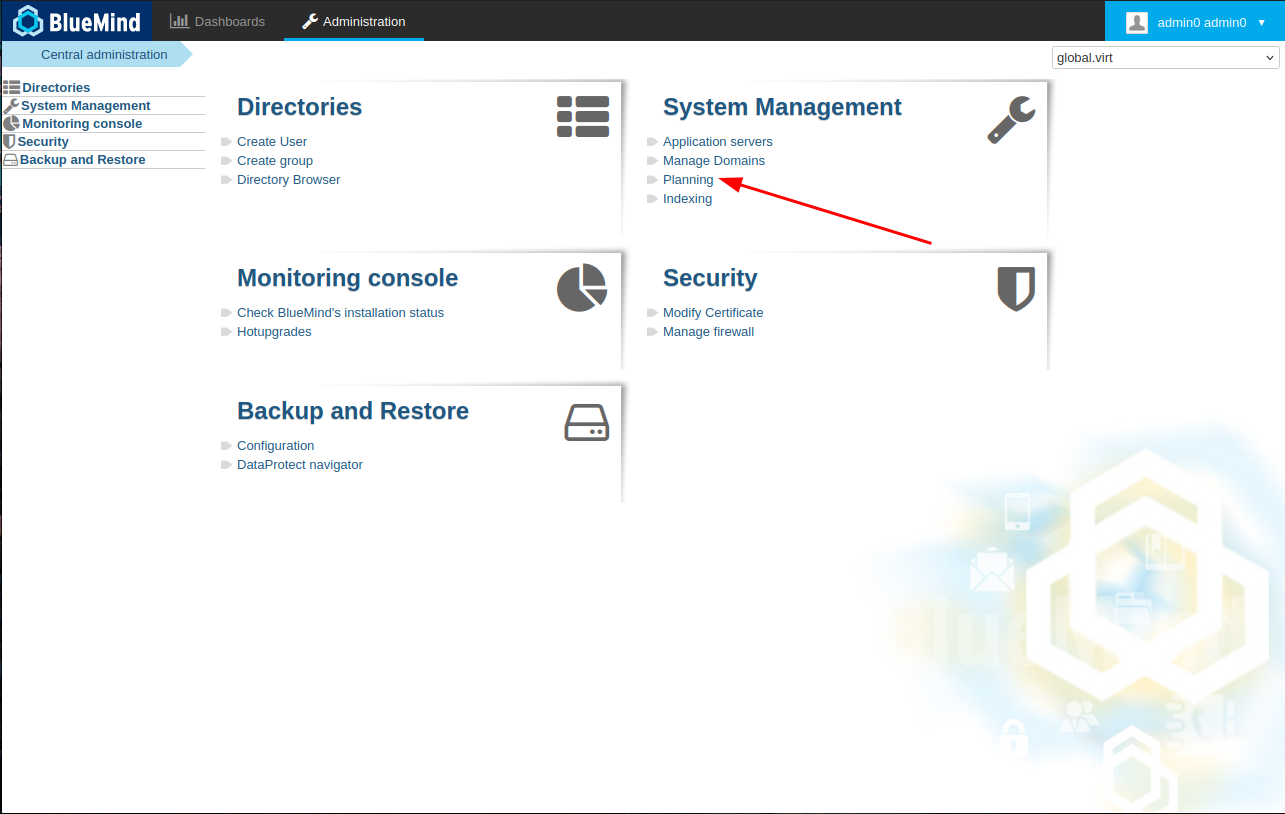

Go to System management > Planning :

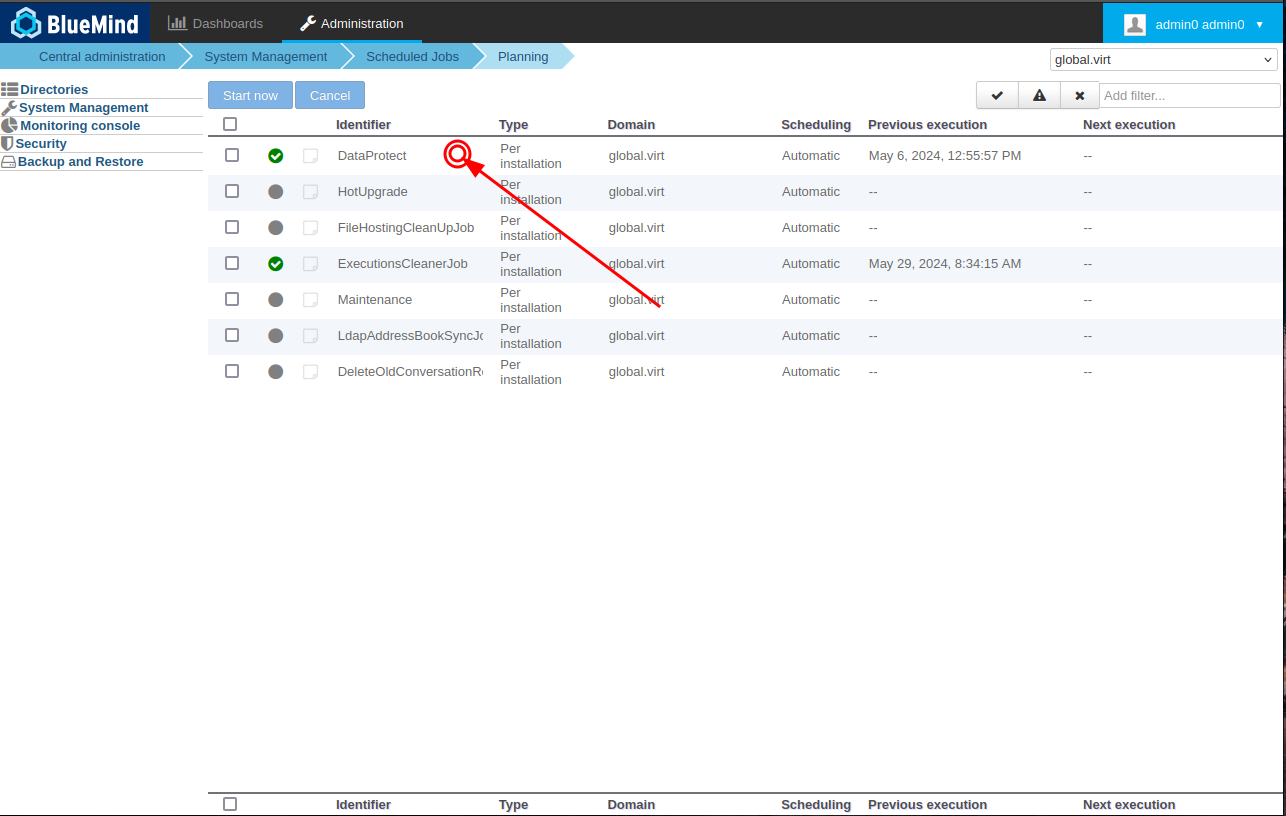

Select the DataProtect task:

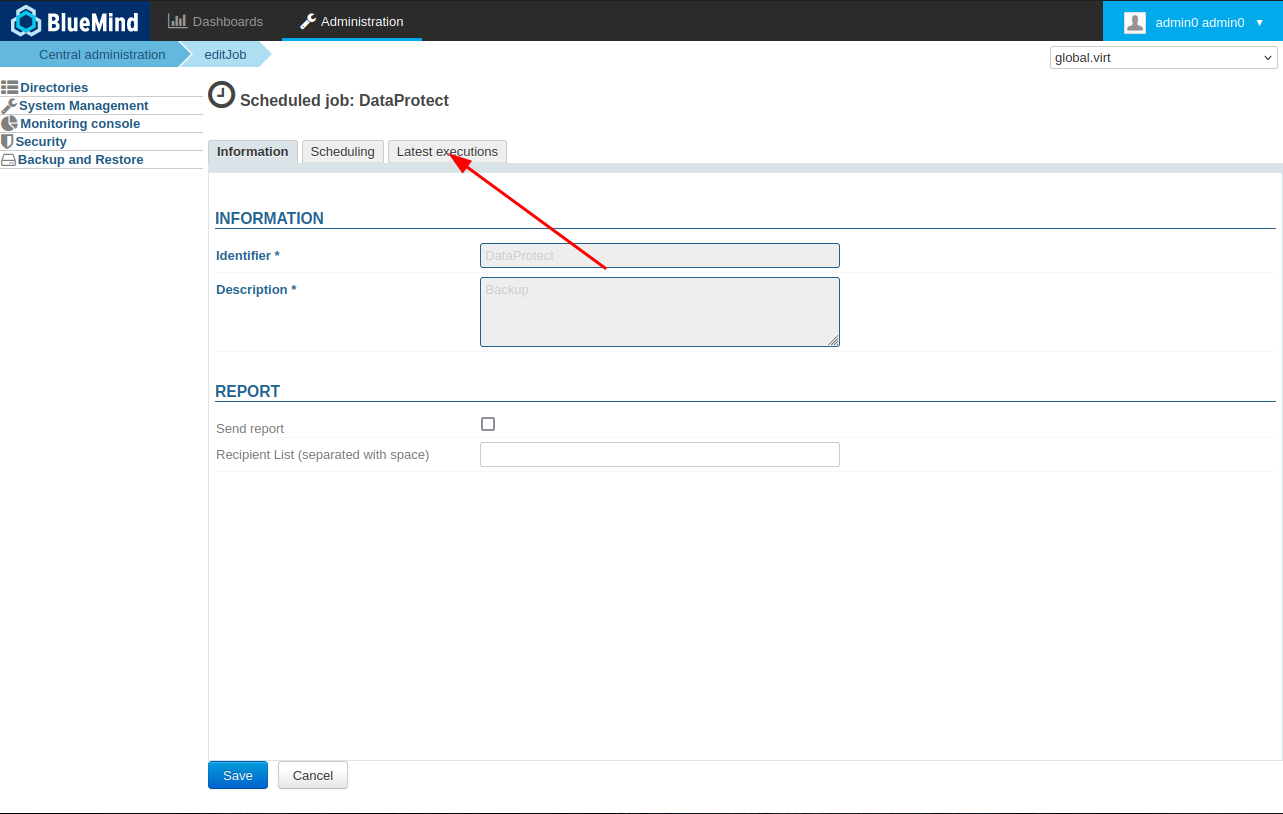

Go to the Latest executions tab:

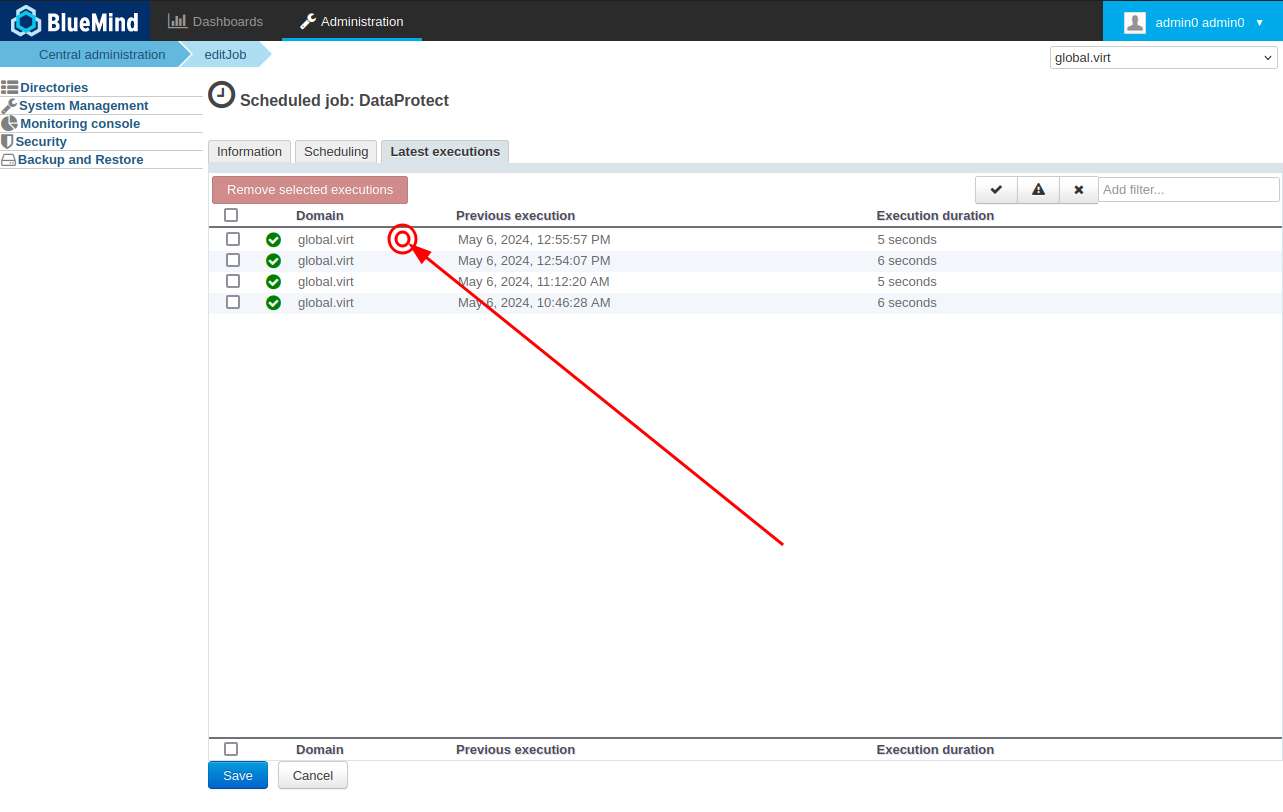

Select an execution from the list:

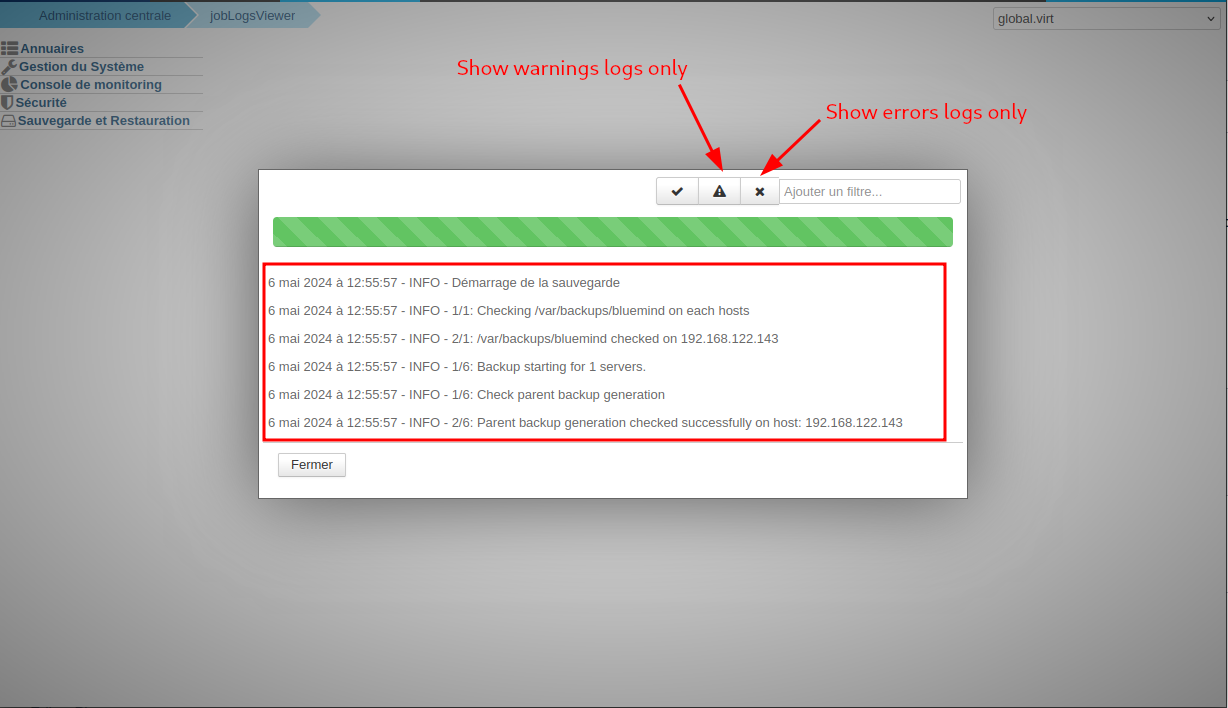

A popup window opens with the execution logs. The buttons can be used to filter entries to find a particular type more easily:
In the event of a problem requiring the intervention of our support team, please consult the Support page beforehand to gather as much information as possible.
In command line
Connected to the server via ssh, perform a grep on the BlueMind main log file /var/log/bm/core.log:
grep -Ei 'continu|backup*|dataprotect|SaveAllTask|DPContext|snapshot|ToolSession|AbstractPgWorker|rsync|DiskSpaceMonitor|/*' /var/log/bm/core.log |less
