The BlueMind LDAP export plugin lets you export users and groups defined in BlueMind to an LDAP directory.

How it works​

BlueMind exports its data to an openLDAP directory. This service is installed during the LDAP export plugin installation and its dependencies.

Generated directory structure​

The root DN of the generated directory is dc=local.

Each BlueMind domain exports its data to a dedicated branch named with the domain UID. Under these domain branches, users and groups of the corresponding domain are placed in dedicated branches.

For example, for a BlueMind composed of 2 distinct domains with UID domain1.internal and domain2.internal, the LDAP directory structure is:

dc=local
 |- dc=domain1.internal,dc=local
 | \- ou=users,dc=domain1.internal,dc=local
 | | \- # Utilisateurs du domaine d'UID domain1.internal
 | | |- ...
 | |
 | \- ou=groups,dc=domain1.internal,dc=local
 |   \- # Groupes du domaine d'UID domain1.internal
 |   |- ...
 |
 |- dc=domain2.internal,dc=local
   \- ou=users,dc=domain2.internal,dc=local
   | \- # Utilisateurs du domaine d'UID domain2.internal
   | |- ...
   |
   \- ou=groups,dc=domain2.internal,dc=local
     \- # Groupes du domaine d'UID domain2.internal
     |- ...

Authentication​

BlueMind user accounts can be authenticated to the LDAP directory using the user's DN and BlueMind password.

Passwords are not exported to the LDAP directory.
To validate a password, the LDAP directory is configured to query the BlueMind bm-core service via the bm-ysnp service.

The root administrator passwords (rootdn):

RootDN administratorPasswordDescription
dc=localuid=admin,dc=localThe _ admin0@global.virt _Used by BlueMind to manage directory content
cn=configuid=admin,cn=configThe _ admin0@global.virt _Used by BlueMind to manage directory configuration
tip

It is possible to use API keys for authentication.

Installation procedure​

  1. install the necessary packages on the server hosting BlueMind :

    aptitude update
    aptitude install bm-plugin-admin-console-ldap-export bm-plugin-core-ldap-export

  2. Restart BlueMind:

    bmctl restart

  3. Install the package bm-ldap-role on the server on which you want the LDAP directory to run (which may be the BlueMind server or another separate server):

    aptitude update
    aptitude install bm-ldap-role
> Si des questions sont posées lors de l'installation des paquets, choisir la réponse par défaut.
> **La configuration de l'annuaire LDAP est ré-initialisée par BlueMind aux étapes suivantes**.

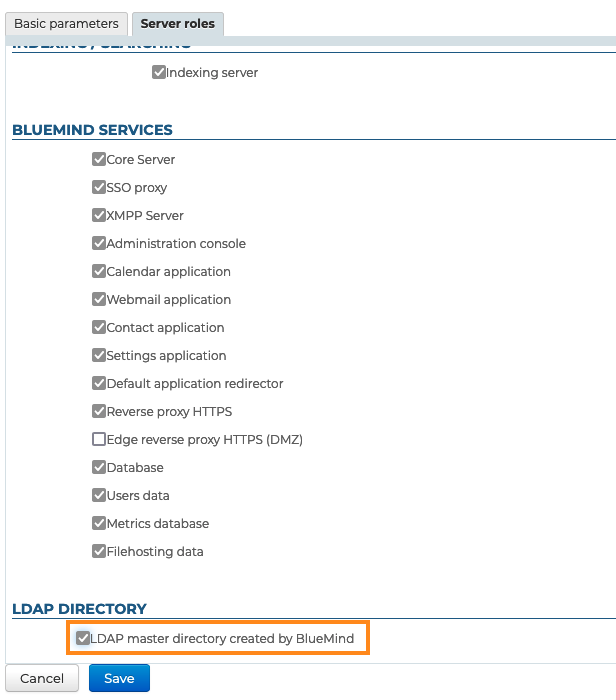

  1. Assign the role to the server. To do this:
  • while logged in as admin0, go to the admin console > Application Servers
  • if you are using a separate server that does not exist yet, add it using the button New > Host
  • select the server and go to the "Server roles" tab
  • in the "Directories" section, select "LDAP master directory generated by BlueMind":
  1. Click "Save" to confirm
  2. Then associate this server with the desired domain(s).

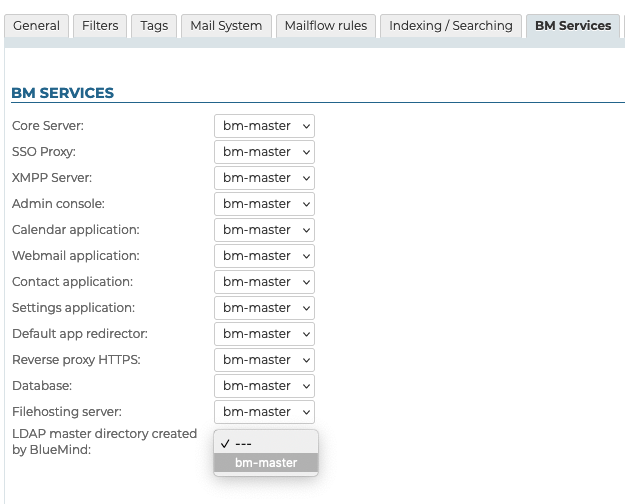

    To do this, go to Domain Management > Supervised Domains and :

    • select the domain you want to export in LDAP format

    • go to the "BM Services" tab

    • select the server for the service with the same name "LDAP master directory created by BlueMind":

    • Click "Save" to confirm

      💡 Repeat for each desired domain.​
