Linked attachments

BlueMind allows you to detach attachments from messages in order to present them as download links to recipients. This reduces the size of messages which lightens the load on servers and communications networks: the file is no longer physically sent with the email message and stored on the incoming network in addition to the outgoing network and thereby duplicated and multiplied as messages are forwarded and replied to.

File storage

Location

Files are stored on the BlueMind server itself, in the directory /var/spool/bm-filehosting/<domain>/; they are placed by user in subfolders of the form: /var/spool/bm-filehosting/<domain>/<first letter of UID>/<UID>/Attachments/

UID and BlueMind version

Users migrated from BlueMind 3.0 have a folder in the form /u/user_entity_XXX.

Users created in 3.5, 4.x and 5.x have a folder in the form f/F149E21D-596B-49CF-AECC-AC354139A06B.

Quotas and disk space

Stored files are not counted towards user quotas, which only concern emails, regardless of whether the Drive functionality (ability to retrieve files later) is activated or not.

Therefore, depending on the usage and the number of users in the installation, this space can grow significantly. To prevent server disk space saturation, it is therefore recommended creating a mount point for externalizing storage and to set up monitoring for it.

File hosting service

With the default installation, files are hosted on the BlueMind server itself (see above). A connection with Nextcloud is also possible.

Other services

Thanks to its API, BlueMind is able to interconnect with any other solution (Dropbox, ownCloud, etc.), so don't hesitate to contact us to discuss an implementation to suit your infrastructure.

Implementation

Installation

Packages are installed by default – there is no need for them to be installed manually.

Implementation takes place in 3 stages:

  1. Define storage server
  2. Activate service for domain(s)
  3. Connecting user accounts

Defining the file hosting server

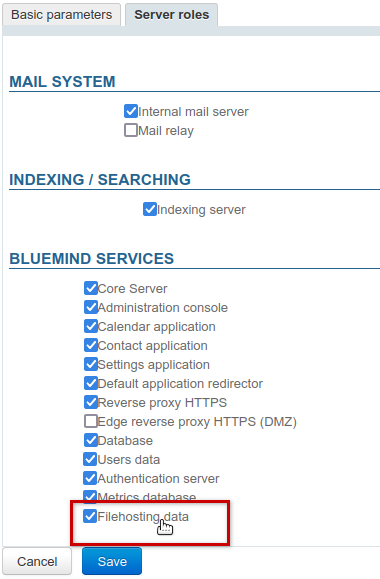

To activate the service, you must first tell BlueMind which server is to be used to store the detached files by assigning the "Filehosting File" role to the desired server, even in the case of a single-server architecture. To do this:

  • log in as admin0
  • go to System Management > Application Servers > [select server] > tab Server Roles
  • in the "BlueMind Services" section, check the "Filehosting data" box:

Enabling the service for the domain

Once the server has been defined, the service must be enabled for the desired domain(s).

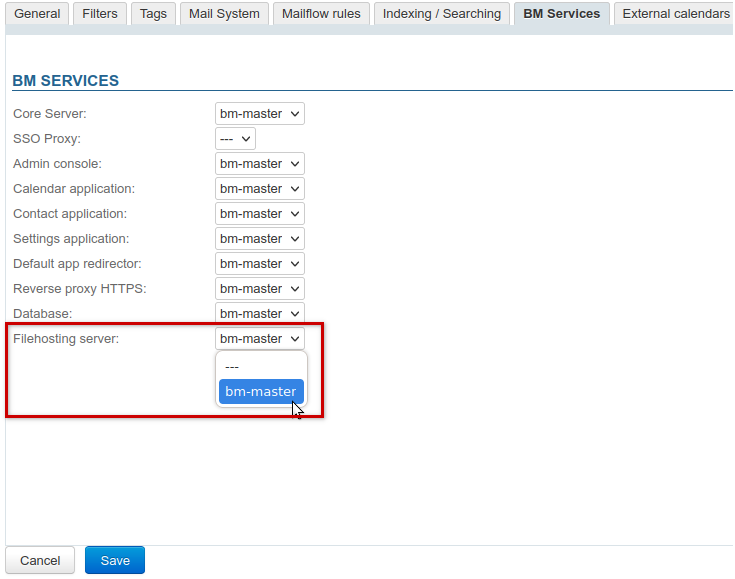

To do this, go to System Management > Supervised Domains > select a domain > tab BM Services and designate via the drop-down list the server on which the role was previously activated:

Enabling the features for users

Once the server has been defined and the service has been activated on the domain, access is granted to users by assigning them the appropriate role ; in this way, the functionality can be activated for all users or just some, by name or via groups.

Two complementary roles are available for both groups and users:

  • Detached Attachments: allows users to detach and link files to messages or calendar events
  • Drive: enables access to the BlueMind file selector. Users can browse previously sent files and link them into new messages. This saves disk space as the same file is not stored multiple times.
Connecting with Nextcloud

Paired with a NextCloud installation, this right gives the user access to their personal storage space on it.

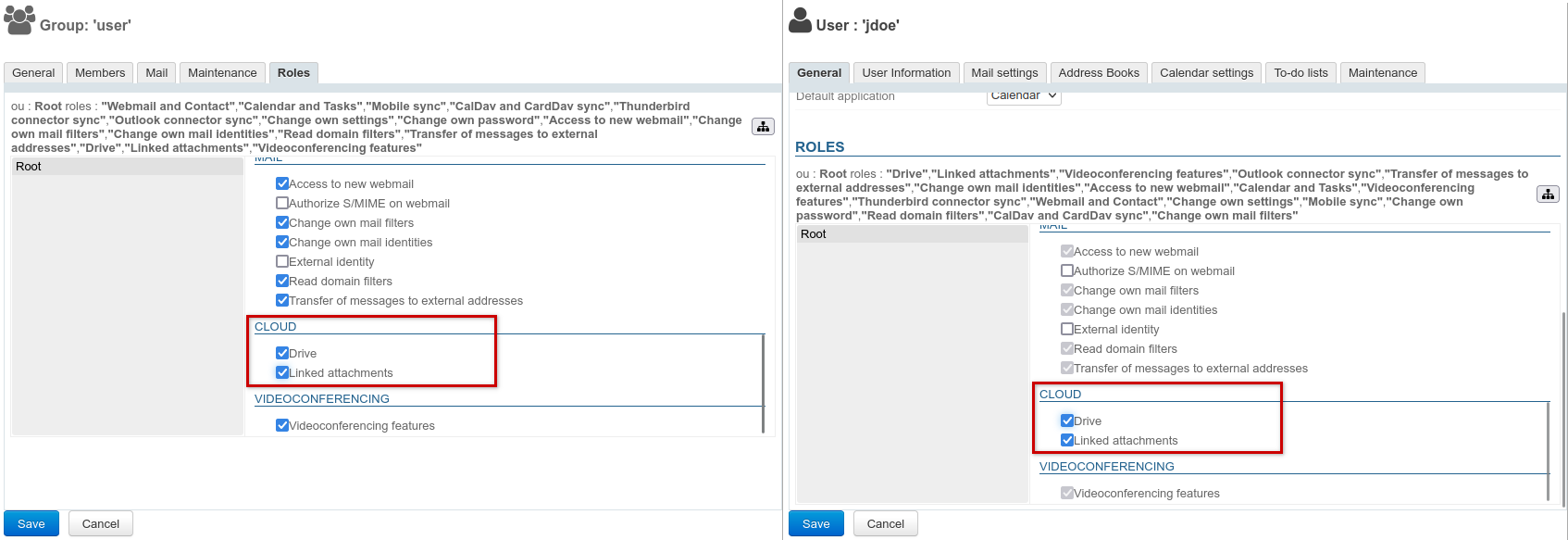

In the admin console, go to the entities' management section > Directory browser:

  • Choose the group or user you want to assign a role to.
  • Go to the roles' management section:
  • In the "CLOUD" section, check the desired function(s):

Once the roles have been assigned, users are offered the option of detaching attachments:

Configuration

3 parameters can be specified globally or per domain:

  • Retention period: number of days files are kept on the server
  • Auto detachment limit (MiB1): any file equal to or larger than this threshold will be automatically detached
  • Maximum linked attachment size (MiB1): maximum accepted size for a file

Global configuration

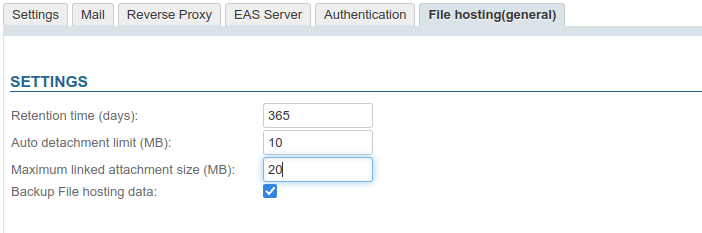

Go to System Management > System Configuration > tab Filehosting: this tab defines default values for newly created domains as well as for domains with unspecified configuration (see below)

Extra options:

  • Backup filehosting data: include user-detached files in the system backup

Configuration by domain

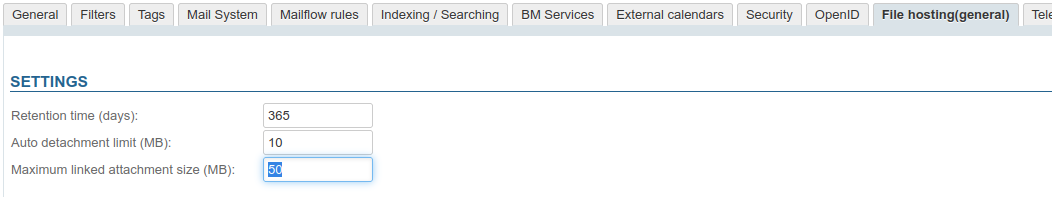

Go to System Management > Supervised Domains > choose a domain > tab Filehosting: this tab allows specifying values for the relevant domain:

Backup by domain

File backup cannot be activated or deactivated on a per-domain basis, but only at the global configuration level (see previous paragraph)

Footnotes

  1. MiB: The unit MiB (MebiByte) is a multiple of the byte, to be distinguished from the MB (megabyte): it represents 1024 kebibytes, itself representing 1024 bytes. So 9 MiB is equivalent to 9.43718 MB. 2
